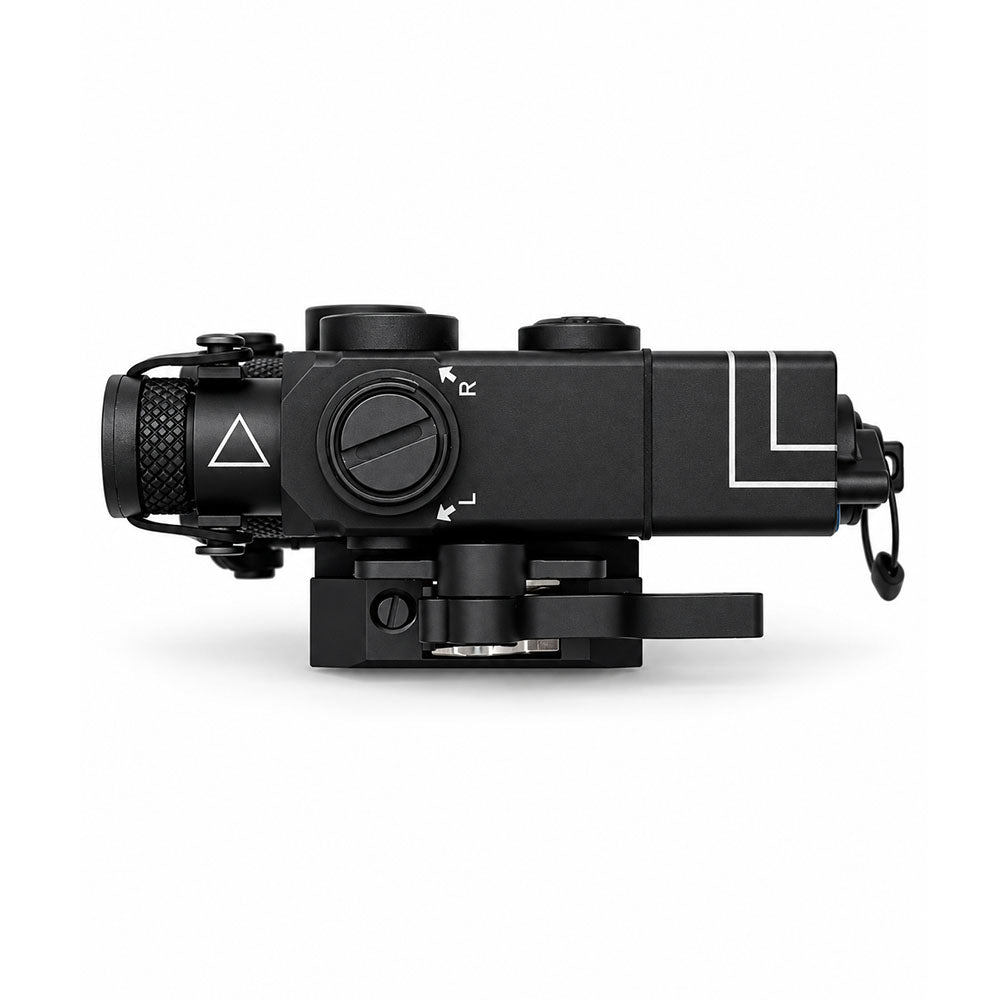

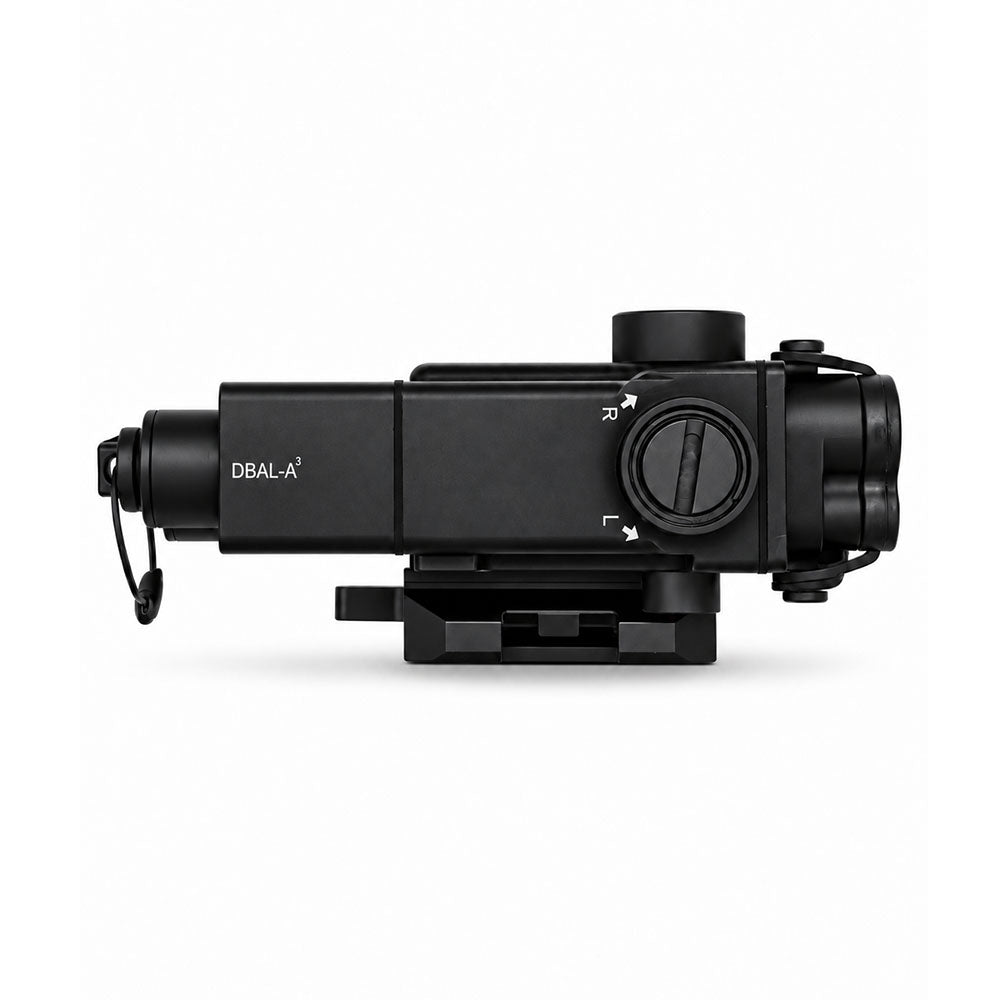

SomoGear DBAL-A3 Tactical Laser VCSEL Illuminator

The SomoGear DBAL-A3 features an advanced full-power VCSEL IR illuminator, delivering powerful, uniform infrared illumination for enhanced night vision performance.

Description

The SomoGear DBAL-A3 Tactical Aiming Laser Illuminator is a lightweight tactical device. It features independent visible laser and infrared (IR) laser + IR illuminator in a compact rail-mounted design.

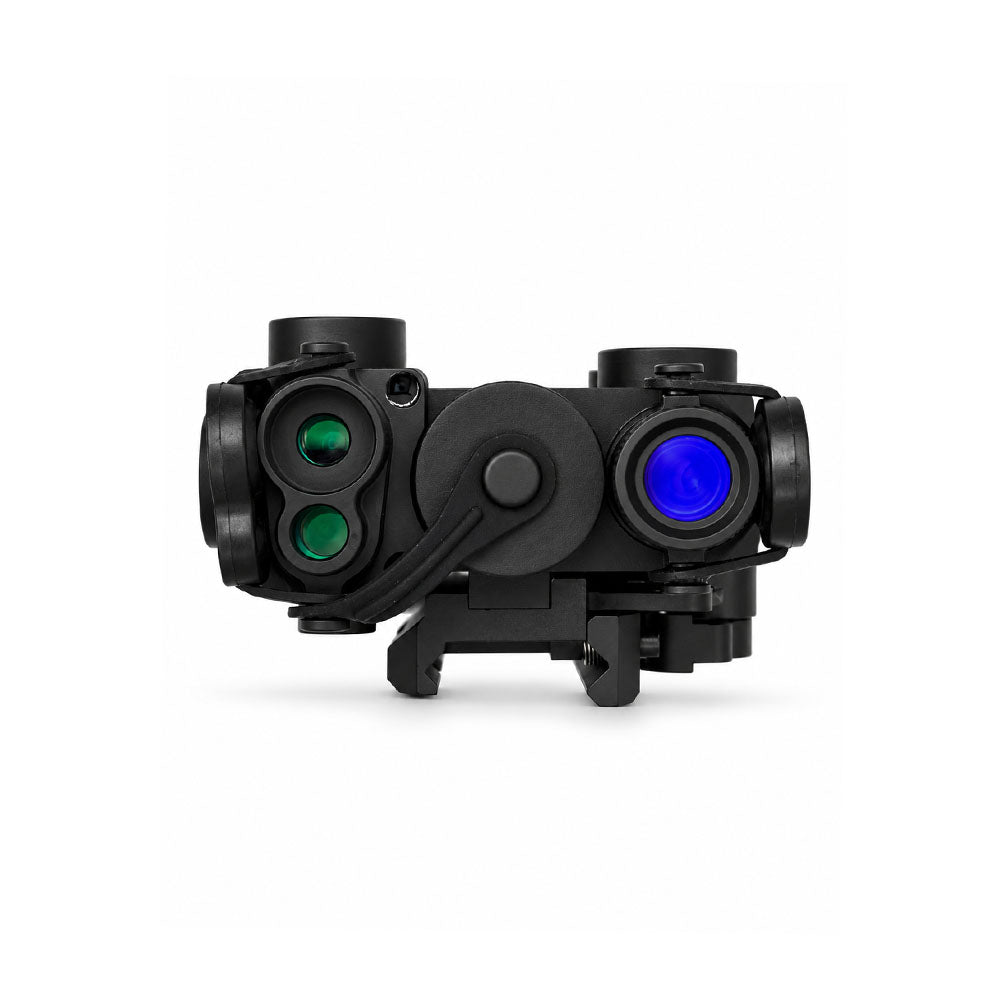

3-in-1 System: Combines a daylight-visible green (or red) laser, an infrared (IR) pointer, and an adjustable IR illuminator.
Co-Aligned Lasers: The visible and IR lasers are slaved together, with less than 10 cm of offset at 30 meters, allowing you to zero both simultaneously using the visible laser during the daytime
Focusable IR Illuminator: IR illuminator max flood angle: ∠8.9°, At 30 meters, maximum flood beam diameter is approximately Ø5.4 meters. Want to check beam size at other distances? Try our Beam Calculator.
Illuminator Emitters: VCSEL module

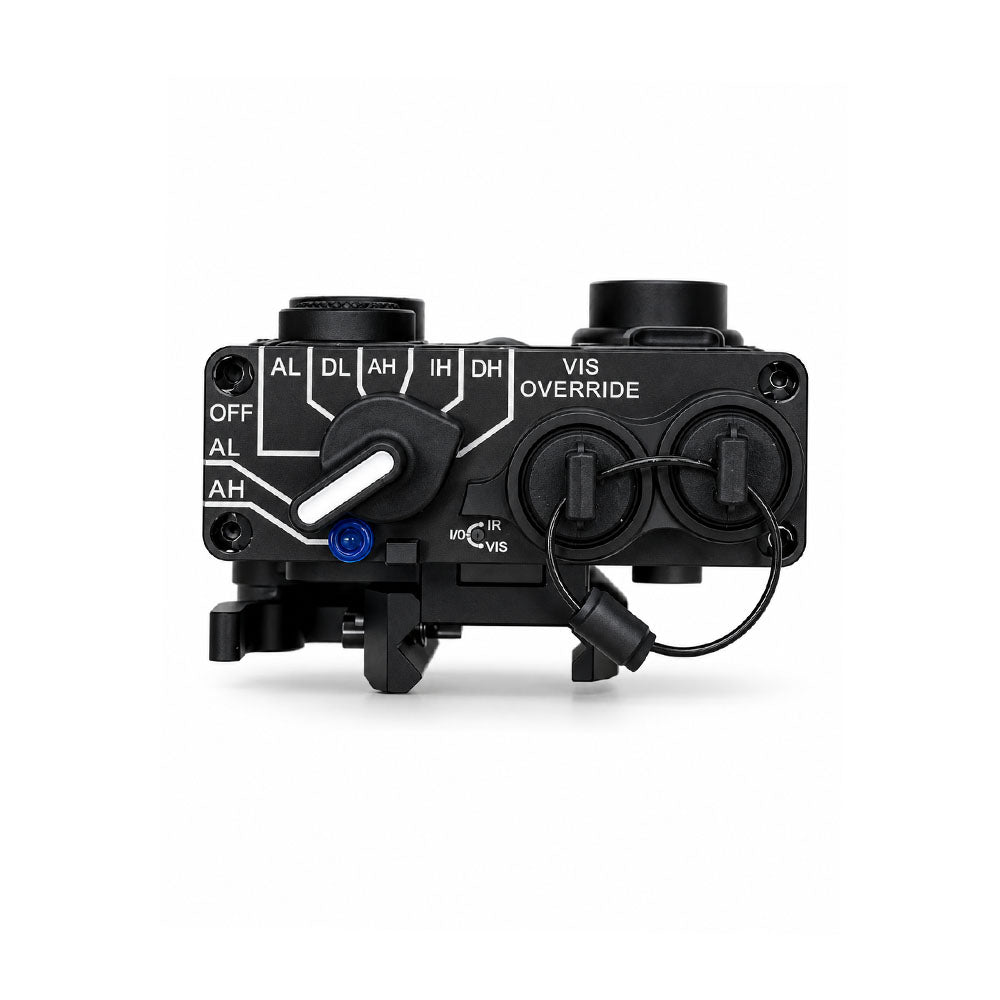

Dual Remote Cable Ports: Supports remote pressure pads and a visible-override feature (which can simultaneously activate a weapon-mounted light and visible laser).
Durability: Housed in a 6061 aircraft-grade aluminum black housing with a Type III hardcoat anodized finish.
Power Source: Runs on a single CR123A battery (roughly 3 hours of operation).
IR Laser / Illuminator Range: Up to 1,500m+
Operating Temperature: -35°C to +55°C
Fits for: Picatinny Rail MIL-STD-1913  (.835″)

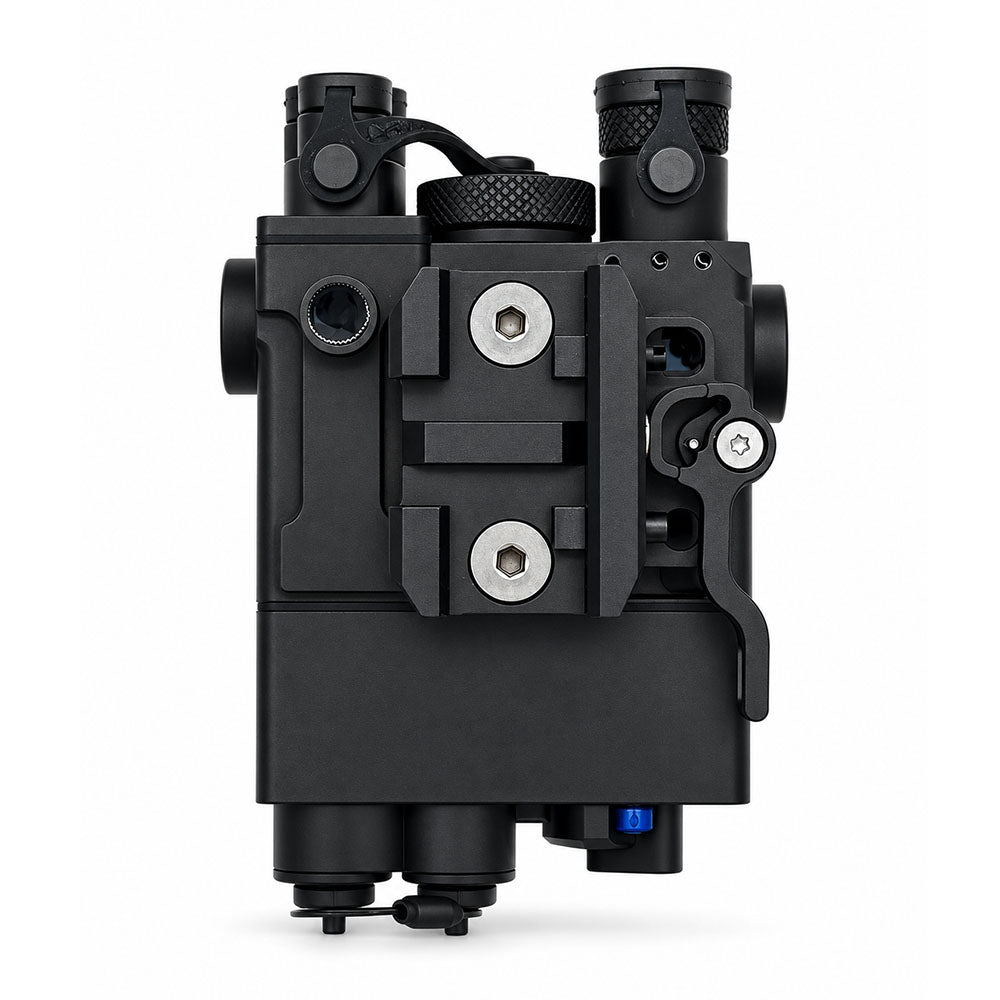

Mounting: Tactical quick-release (QD) mount
Plug: Crane Style (Compatible L3 crane plug)
Markings: Accurate original markings
Waterproof: Rain- and splash-resistant design, can not submersible.
PCB Potting: Yes
Eye-Safe Mode: Keep the blue safety screw in its original position at the rear. Do not remove it.

Special Remark:

• All lens covers are opaque and do not function as diffusers or ND filters.
• All the lens cover is an opaque cover, without diffuser function.
• To activate the VIS-Override function, the VIS Override Pressure Switch need to be purchased separately

***Due to differences in monitor settings and lighting conditions, actual color may vary slightly from the images shown.***

Technical Specifications

• Weight: 6.26 oz (195g), without battery
• Battery: 1 x 3V CR123A, Battery not included due to air shipping restrictions.
• To maximize battery life, we highly recommend removing the battery when the device is not in use for an extended period.

Power Output:

• Visible Laser / IR Laser (Low): ≤4.9 mW
• Visible Laser / IR Laser (High): ≤20 mW
• VCSEL Illuminator (Low): ≤4.9 mW
• VCSEL Illuminator (High): ≤80 mW

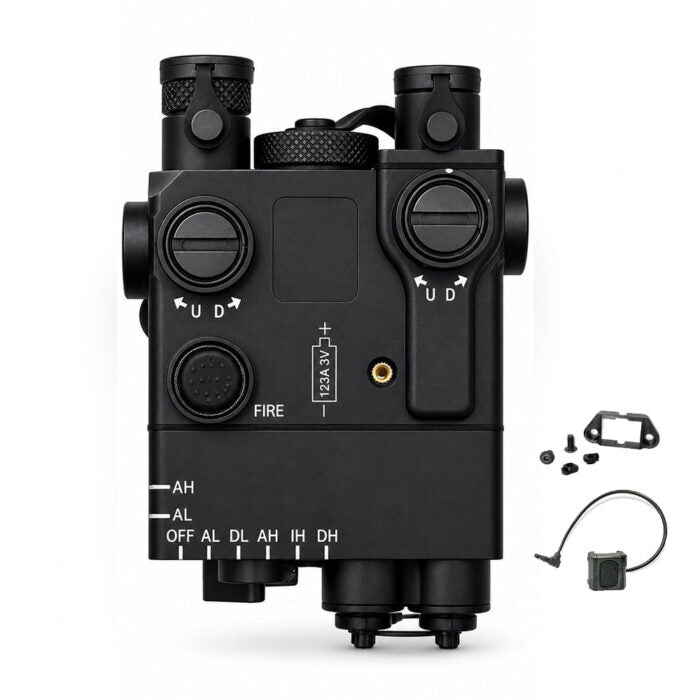

Package Includes

• 1 x DBAL-A3 device
• 1 x ModButton crane switch
