SomoGear NGAL/LA23 Aiming Laser IR Laser Illuminator Full Power

Co-Aligned VIS & IR laser, Focusable IR illuminator, w/ND filter & Diffuser, suitable for Training use. Rain and splash resistant.

Description

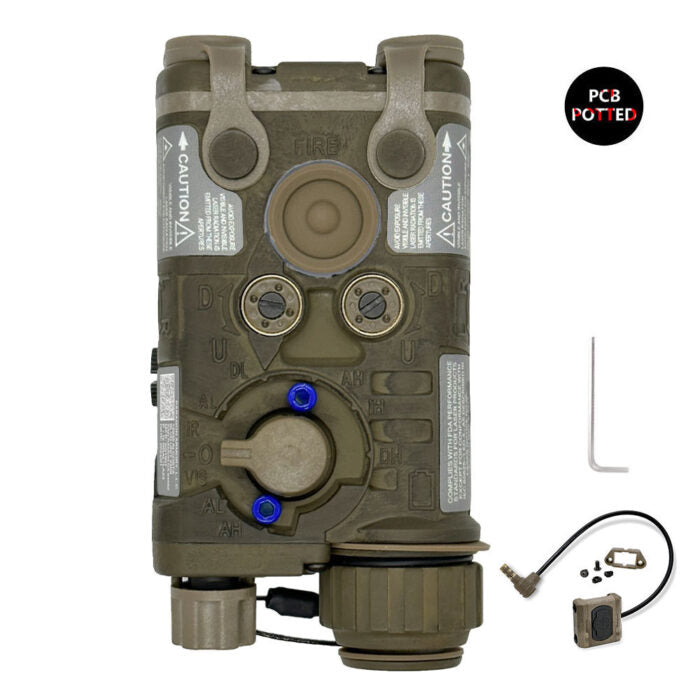

SomoGear NGAL Illuminator w/ND filter & Diffuser

The replica SomoGear NGAL Aiming Laser Airsoft Gear is a rugged, ultra-compact and lightweight system, designed to be compatible with all generations of night vision devices.

• Brand: SOMOGEAR

• Fits for Picatinny Rail MIL-STD-1913 (.835″)

• CNC 6063 aircraft aluminum housing with tan color painting

• Zeroable aiming laser (When mounting on the rail, don’t over torquing the mount screw, or else it may losing zero)

• Embossed Fonts Marking

• Co-aligned visible and infrared lasers (at 30 meters distance they are less than 10cm apart)

• Focusable IR Illuminator with Diffuser cover

• Rotating IR illuminator Focus Ring 288° degrees from spot to flood

• IR illuminator max flood range: ∠5.73° (at 30m distance, the max flood beam diameter ≈ Ø3.0 meter)

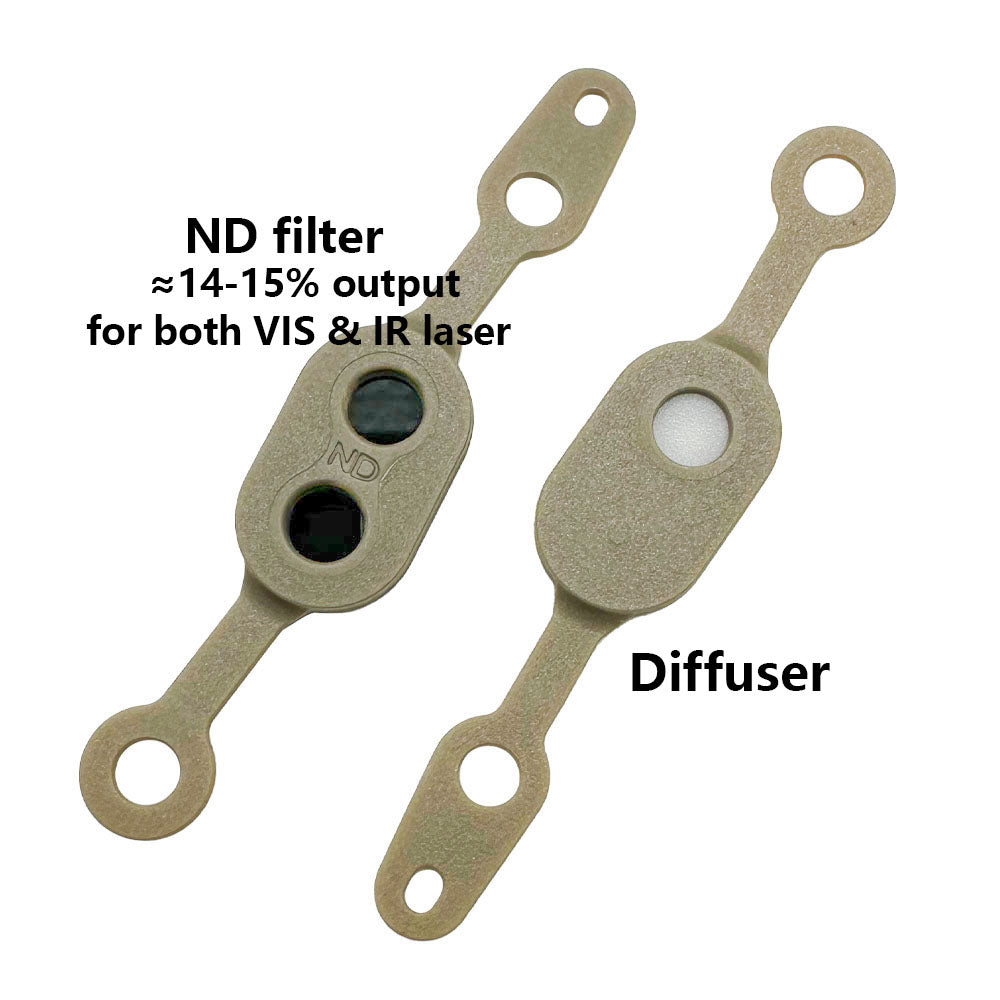

• With ND filter & Diffuser, suitable for Training use. (with ND Filter ≈ 14-15% output power for both VIS & IR laser)

• If you need to activate the Vis-Override function, you need to purchase the Vis-Override Pressure Switch separately.

• Power levels adjustable based on airsofter requirements (locked blue screw is eye-safe mode, unlock the blue screw not eye-safe, Do not shoot directly to the eyes, take care when use this mode)

• Do not shoot directly to night vision, take care when use high power mode

• Battery Life: >6 Hours

• Use 3V CR123A New battery, and pay attention to the positive and negative directions of the batteries

• Quick setting reinforced epoxy sealed the top activate button

• Rain and splash resistant, but not suitable for submersion.

***Because of the different monitor’s color, brightness, the pictures and objects will be slightly different.***

NGAL COMBO TECHNICAL SPECIFICATIONS Dimensions:  3.6” L x 2.0” W x 1.25” Weight: 4.8 oz (172g). without battery Battery: 3V CR123A (not include)

Visible Aim Laser

 Output Power Low: ≤5mW

Output Power High: ≤20mW

IR Aim Laser

 Output Power Low: ≤1mW

Output Power High: ≤5mW

IR Illuminator

Output Power Low: ≤5mW

Output Power High: ≤20mW

Configuration & Functions:

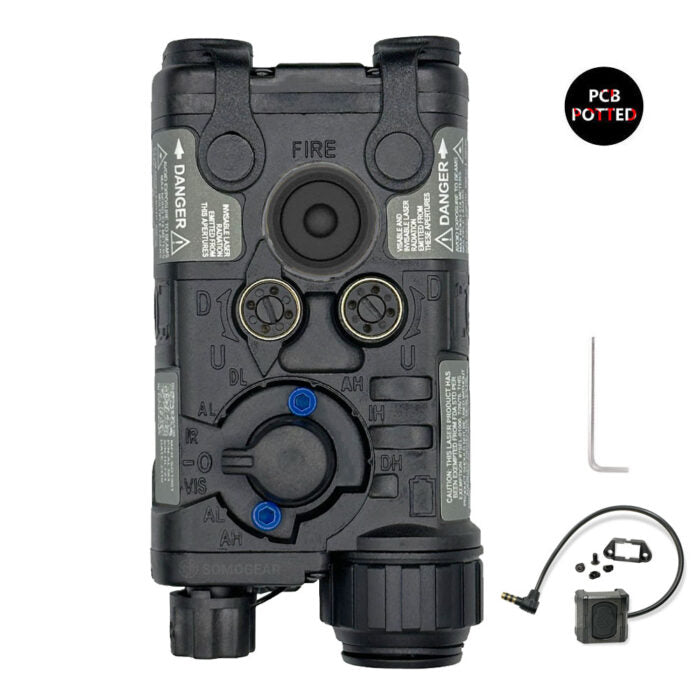

• Tan/ Black Housing

• Visible Laser (Green / Red)

• IR Illuminator

• IR Laser

• Co-aligned VIS & IR Laser

Package Include: 1 x NGAL/LA23 with ND filter & Diffuser 1 x ModButton Switch 1 x Stickers

Remark: NOT include the battery (due to airmail restricted)
